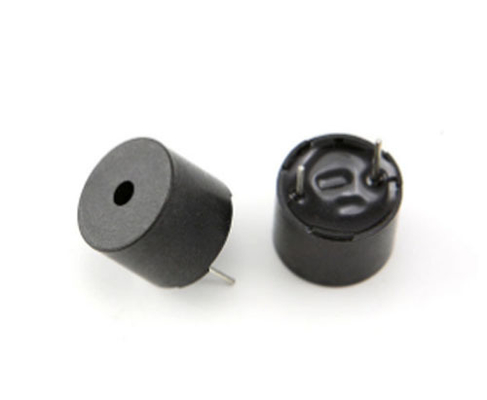

FBMB1295 1.5V 3V 5V 9V 12V 12*9.5mm Plastic Piezo Buzzer With Pin Active Buzzer Electric Magnetic Buzzer

1 Piece
MOQ
$0.12(1 - 999 Pieces) $0.11(>=1000 Pieces)
prezzo
FBMB1295 1.5V 3V 5V 9V 12V 12*9.5mm Plastic Piezo Buzzer With Pin Active Buzzer Electric Magnetic Buzzer
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: FBMB1295
Type: Buzzer
Material: Plastic
Color: Black
Input Type: AC, DC
Voltage - Rated: 12vpp
Voltage Range: 3-50vpp
Frequency: 2500
Technology: Piezo
Operating Mode: Pulse
Duration: Repeating every 1.2 Sec
Current - Supply: 50
Operating Temperature: -40°C ~ 85°C
Mounting Type: Custom
Termination: Surface Mount
Size / Dimension: 12MM
Height - Seated (Max): 12mm
Voltage - Input (Max): 30V p-p
Capacitance @ Frequency: 80000pF @ 1kHz
Output Type: Analog
Height (Max): 23
Frequency - Self Resonant: 2500
Efficiency - Type: Half Space Sensitivity
Power - Max: 10W
Rated Voltage: 12
Informazioni di base
Model Number: FBMB1295
Termini di pagamento e spedizione
Packaging Details: Standard Export Carton
Descrizione di prodotto

FBMB1295 1.5V 3V 5V 9V 12V 12*9.5mm piezo buzzer with pin active buzzer Electric magnetic buzzer

Model No

FBMB1295-3V

FBMB1295-5V

FBMB1295-9V

FBMB1295-12V

Rated Voltage

3VDC

5VDC

9VDC

12VDC

Operating Voltage

2-5VDC

4-8VDC

7-12VDC

8-15VDC

Max.Rated Current

30mA/3VDC

30mA/5VDC

30mA/9VDC

30mA/12VDC

Min.Sound Pressure Level

75dB/10cm

80dB/10cm

85dB/10cm

85dB/10cm

Resonant Frequency

2.7±0.5KHz

2.7±0.5KHz

2.7±0.5KHz

2.7±0.5KHz

Operating Temperature

-20~+70℃

-20~+70℃

-20~+70℃

-20~+70℃

Storage Temperature

-30~+80℃

-30~+80℃

-30~+80℃

-30~+80℃

Weight

2.5g

2.5g

2.5g

2.5g
